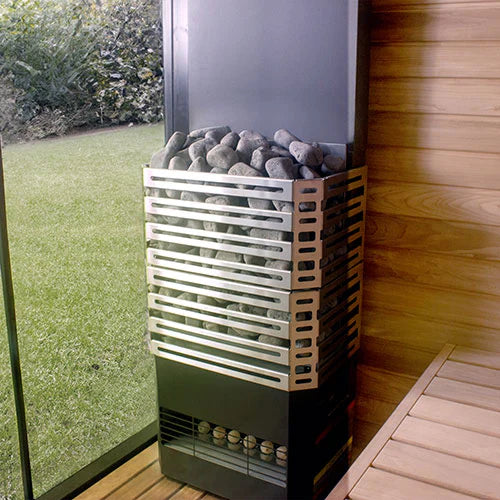

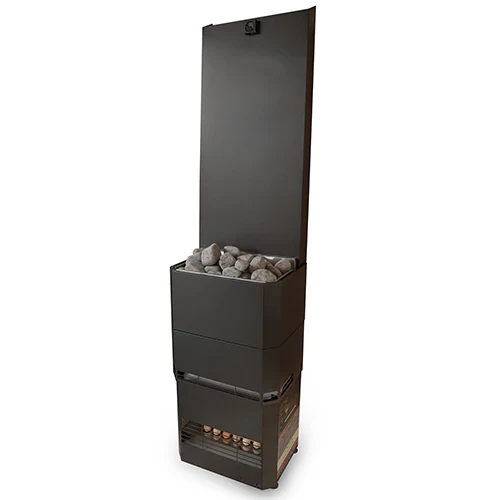

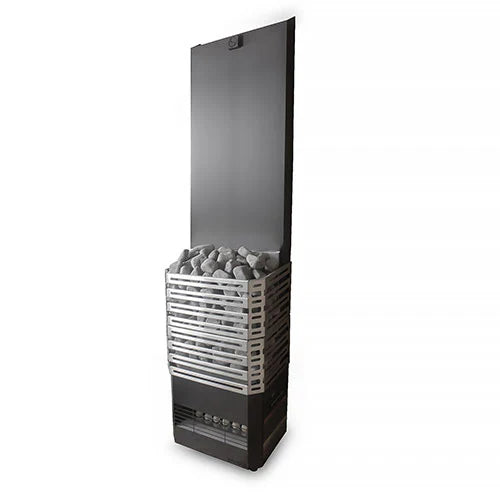

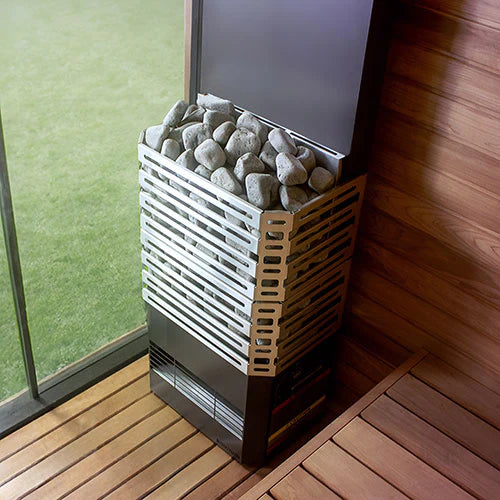

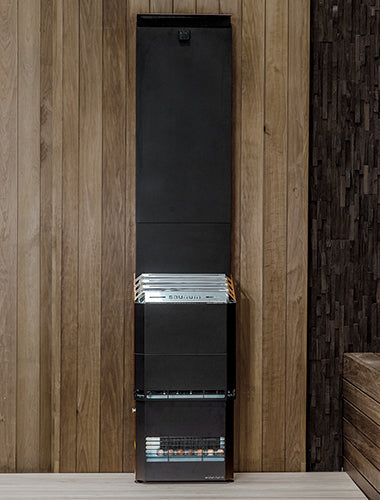

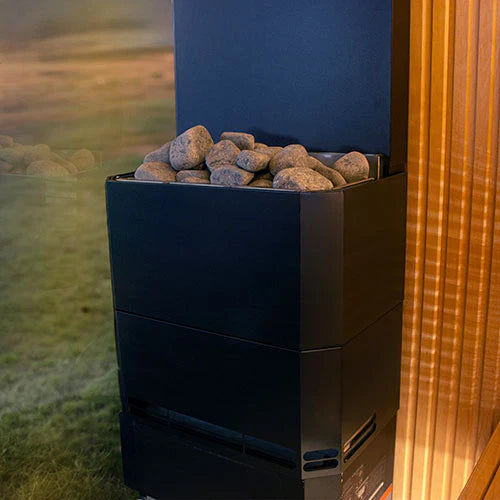

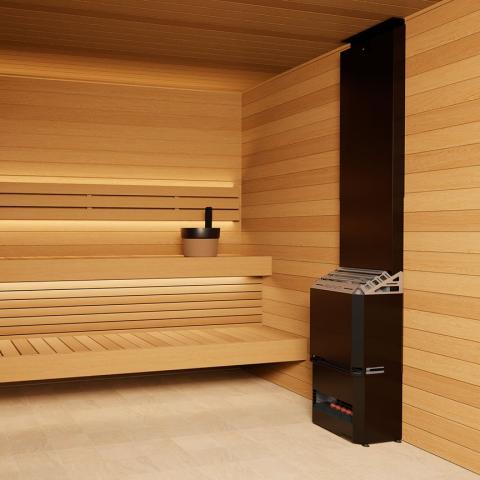

| Complete Saunum Air 5, Electric Sauna Heater Package w/Climate Equalizer 240V/1PH
The Saunum Air sauna heater offers a unique air-blending system that creates even temperature distribution throughout the sauna. It enhances wellness by releasing negative ions through Himalayan salt orbs, and it’s Wi-Fi enabled for easy remote control. With a compact design, it's suitable for various sauna sizes, ensuring a balanced, comfortable, and customizable sauna experience. This system is designed for users seeking more than just heat, with a focus on air quality and balanced comfort for the ultimate sauna experience.
Different modes
Experience 6 distinct styles of sauna bathing Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences.
-
Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate a traditional banya.
-
Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense, consistent heat.
-
Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna.
-
Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal hot yoga sessions.
-
Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber creating a true salt sauna.
-
Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.
Features
-

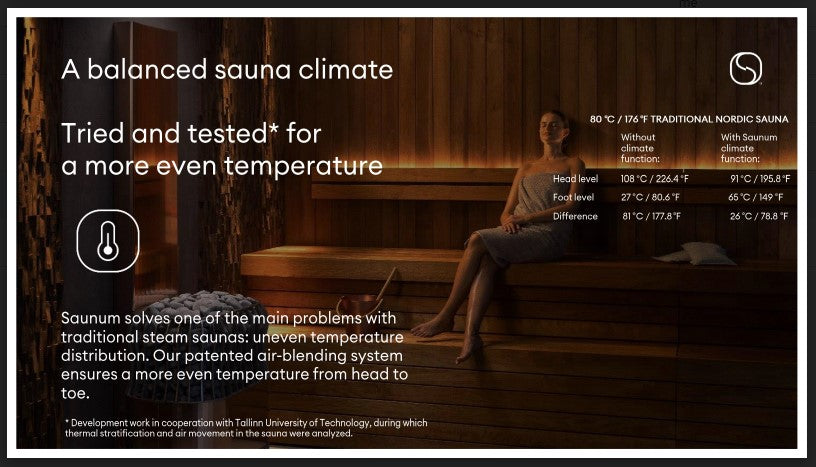

Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
-
European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
-

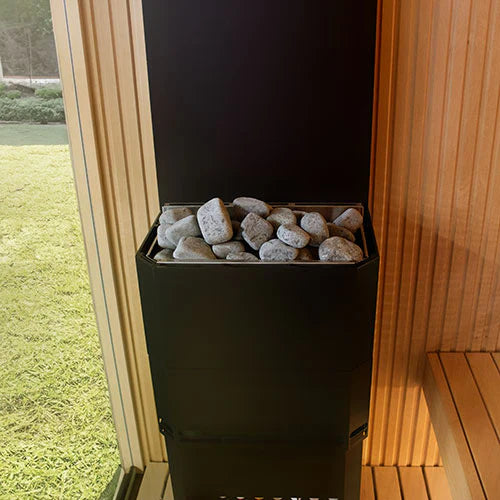

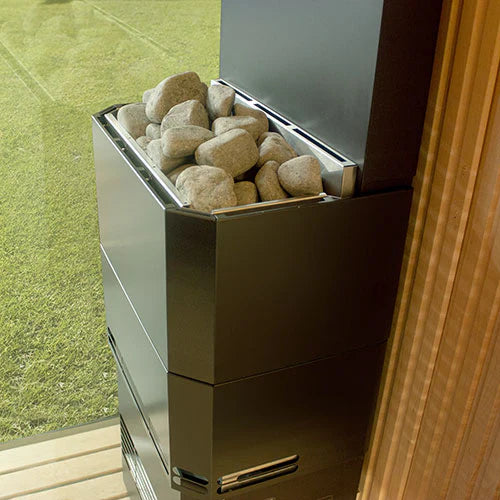

Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 154-pound stone capacity (required 5 boxes)
-
Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
-
Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
-
UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
-
Available Aromatherapy - Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
AirIQ WiFi
Easily control the Saunum heater and climate device with just a few taps on the screen.
-
For use with Saunum electric heaters up to 12 kW (Over 12 kW requires a separate contactor box.)
-
Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
-
Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
-
Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed):
-
Classic Nordic Steam Sauna
-
Humid Steam-rich Sauna
-
Mild, Relaxing Sauna
-
AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
-
Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
-
Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app.
-
Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
-
Outside Sauna room installation
-
Screen lock
-
Child Safety Lock
-
Temperature Sensor
-
Door Sensor
Stones
-
High-Quality Olivine diabase raw stone
-
Rounded, Pre-washed & ready to use
-
Durable with high-heat capacity
-
Stones range from 2" to 4" (5-10 cm)

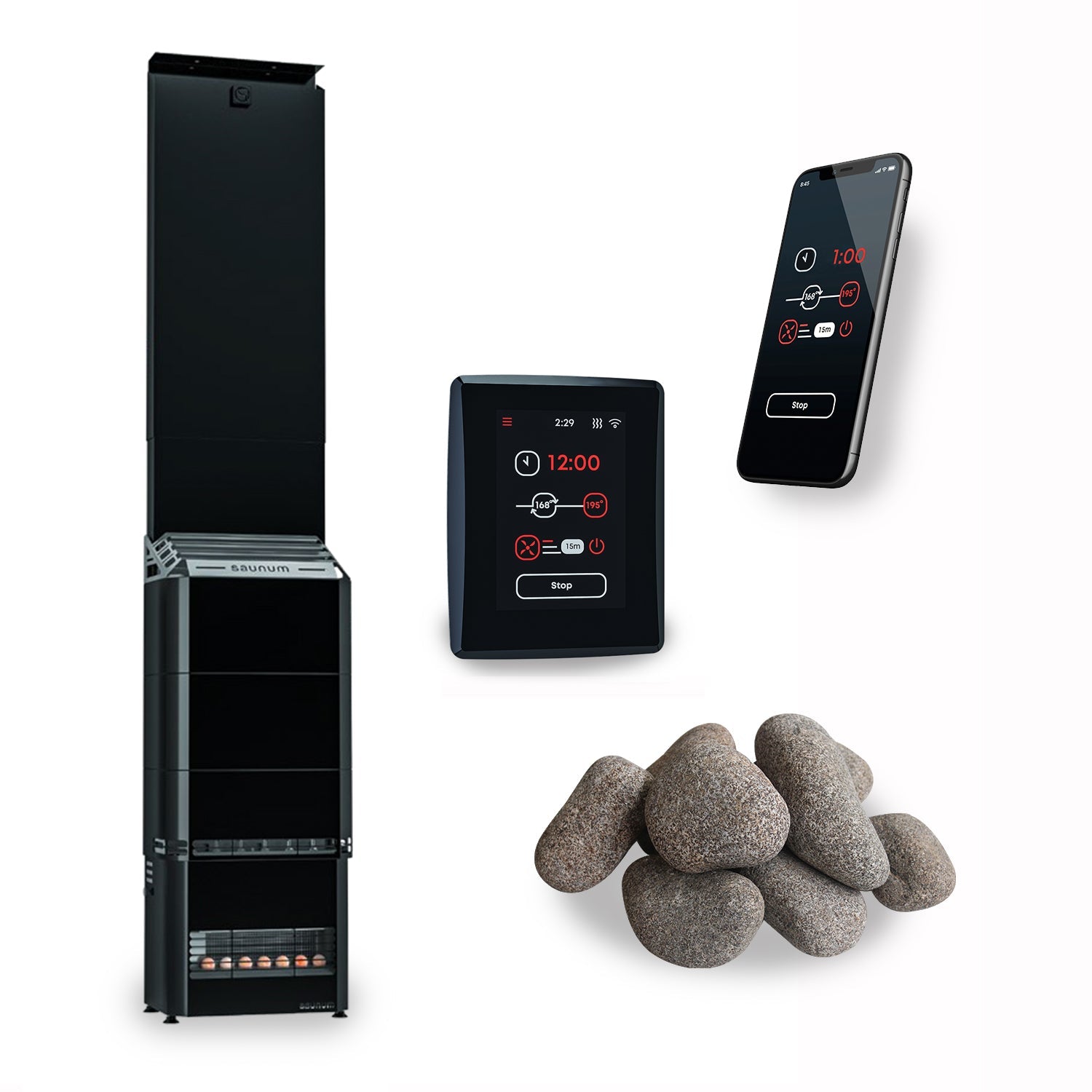

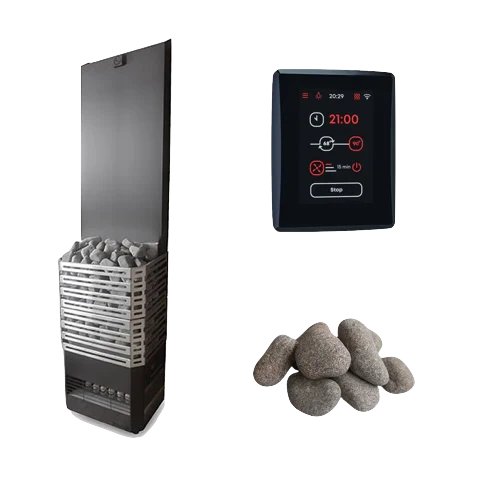

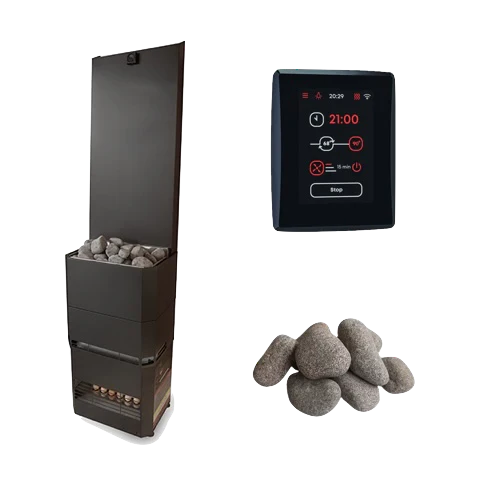

Package Includes
Saunum Air 5
-

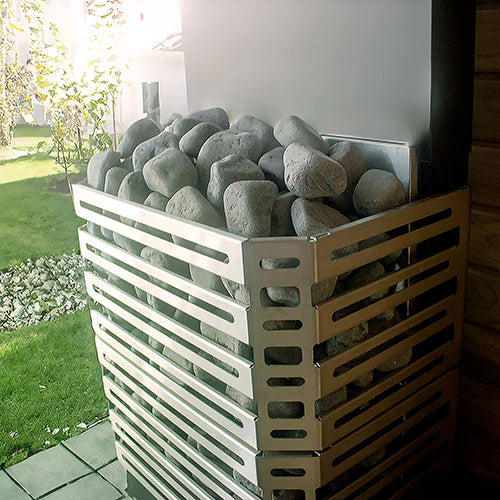

Stainless Steel or Nordic Black Metal Stone Basket
-
Heat Equalizing Module
-
Telescopic Hot Air Intake
-
Heating Element Air Tunnels (3)
-
Himalayan Salt Spheres (7)
-
Hot Air Intake Cap
-

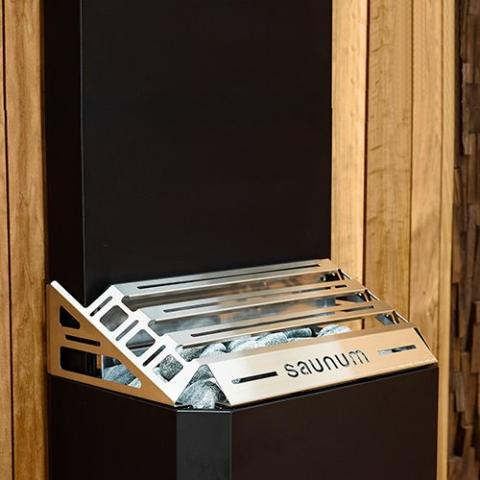

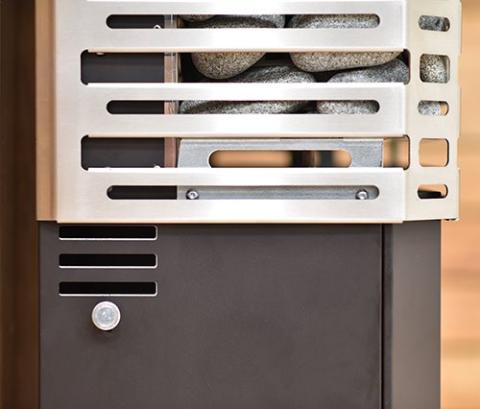

Stainless Steel Protective Grille
-
Heating Element Electrical Cable, 5' (152.4 cm)
-
Heat Equalizer Electrical Cable, 5' (152.4 cm)
-
Room Temperature Sensor & Cable, 9.5' (289.56 cm)
-
Door Sensor & Cable Assembly, 9.83' (299.62 cm)
-
IQAir Display Panel Cable, 16' (487.68 cm)
-
Quick Install Guide
-
Installation & Operation Manual
-
Limited Warranty
Saunum AirIQ WiFi
-
Soft-Touch Display Panel (Wi-Fi App-Based Updates & Operation)
-
Wall Mounting Plate & Fasteners
-
Power Unit
-
Door Sensor Magnet
-
Installation & Operation Manual
-
Limited Warranty
Stones
Specification
| Heat Equalizing System |
|
| Model |
Air 5 |
| Certification/Global Safety Rating |
UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module |
3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake |
17.72" x 4" ( 450.09 x 101.6 mm) |
| Cool Air Intake Type |
Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
| Cool Air Intake Size |
2" x 2.75" (50.8 x 69.85 mm) |
| Blended Air Output |
4.31" x 14.13" (109.47 x 358.90 mm) |
| Himalayan Salt & Aroma Tray Type |
Removable, Slotted |
| Himalayan Salt & Aroma Tray Size |
16.5" x 4.5" (419.1 x 111.76 mm) |
|
Sauna Heater System
|
|
|
Model
|
AIR 5
|
|
Certification/Global Safety Rating
|
UL (Underwriters Laboratories)
|
|
Heater Body Style
|
Stainless Steel
|
|
Heating Elements
|
Incoloy (Stainless Steel)
|
|
Heating Element Protection
|
Air Tunnels, Slotted Stainless Steel, Three
|
|
Room Size
|
106 - 212 (3-6 Cubic Meters)
|
|
Wattage Rating
|
4800
|
|
Operating Voltage
|
240 VAC
|
|
Phase
|
Single
|
|
Amperage
|
20
|
|
Weight
|
106 lbs (48 kg)
|
|
Shipping Weight with Stones
|
300 lbs (136 kg)
|
|
Width
|
18.3" (465 mm)
|
|
Depth
|
12.4" (315 mm)
|
|
Height
|
88.58" - 94.48" (2250-2400 mm)
|
|
Minimum Ceiling Height
|
71.48" (1815.6 mm)
|
|
Stone Capacity
|
132lbs
|
|
Stone Size
|
2" to 4" (5-10 cm)
|
|
Circuit Breaker
|
30 Amp
|
|
Wire Size to Power Unit
|
(2) #10 + N + G
|
|
Wire Size - Power Unit to Elements
|
7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)
|
|
Wire Size - Power Unit to Heat Equalizer
|
5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)
|
|
Room Temperature Sensor
|
Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
|
|
Display Panel
|
|
|
Model
|
AIRIQ WI-FI
|
|
Certification/Global Safety Rating
|
UL (Underwriters Laboratories)
|
|
Type
|
Digital, Soft-Touch
|
|
Response
|
Tactile with Haptic Feedback Technology
|
|
Language Selection
|
16-Languages
|
|
Wi-Fi Capability
|
Wi-Fi, App-Based Updates, and Operation
|
|
Notifications
|
Sauna is Ready, Heater Status, Open Door, and Overheating Protection
|
|
Safety Features
|
Admin, Screen Lock, Door Sensor, and Overheat Protection
|
|
Color
|
Nordic Black
|
|
Heat Equalizing Control
|
3-Speed Adjustability
|
|
Width
|
3.3" (83.82 mm)
|
|
Depth
|
.8" (20.32 mm)
|
|
Height
|
4.1" (104.14 mm)
|
|
IP Rating
|
IP20
|
|
Minimum Temperature Setting
|
104-Degrees Fahrenheit (40-Celcius)
|
|
Maximum Temperature Setting
|
194-Degrees Fahrenheit (90-Celcius)
|
|
Duration Timer
|
1 - 6 Hours
|
|
Display Panel Cable
|
4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
|
|
Door Sensor and Cable Assembly
|
2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
|
|
Door Sensor Probe
|
1" Long and .24" Diameter (25 x 6 mm)
|
|
Operating Temperature Range
|
-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
|
|
Programmability
|
Weekly Scheduling with Three Programmable Sessions
|
|
Temperature Settings
|
Fahrenheit or Celsius
|
|
Region Settings
|
North American and European Versions
|
|
Room Temperature Sensor
|
Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
|
